Introduction

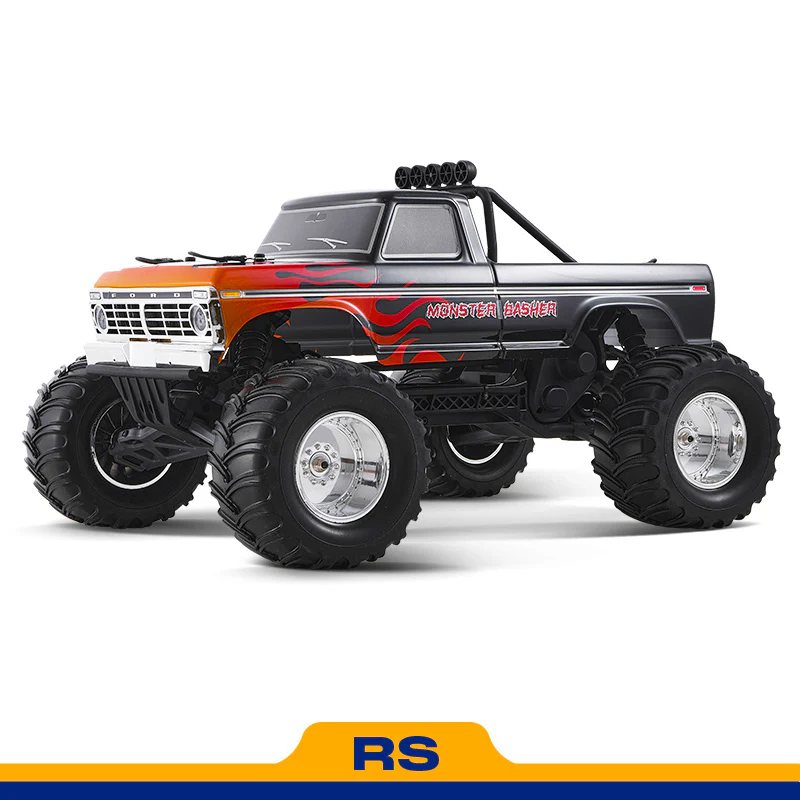

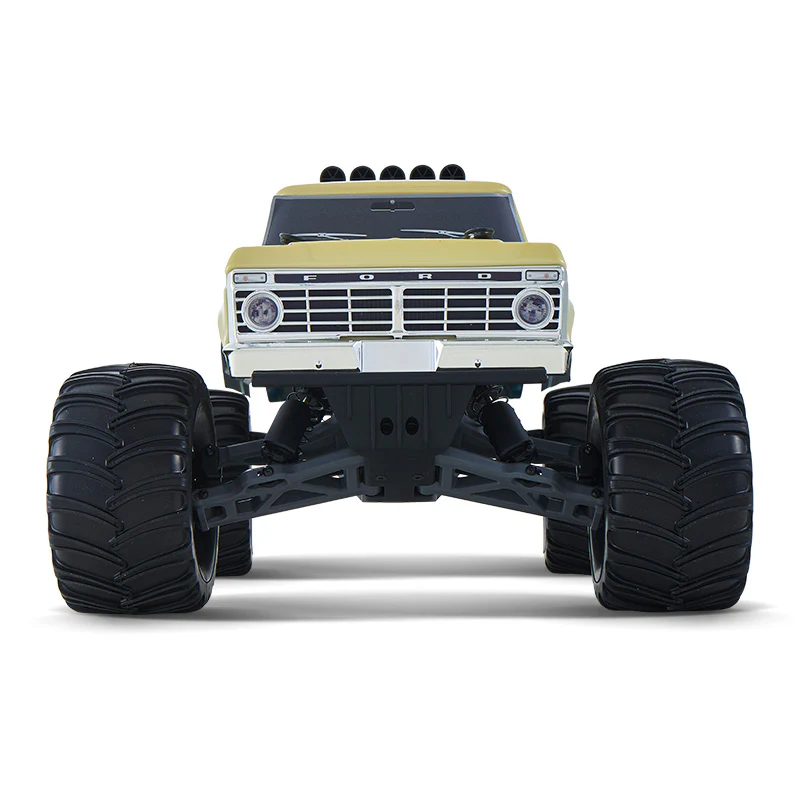

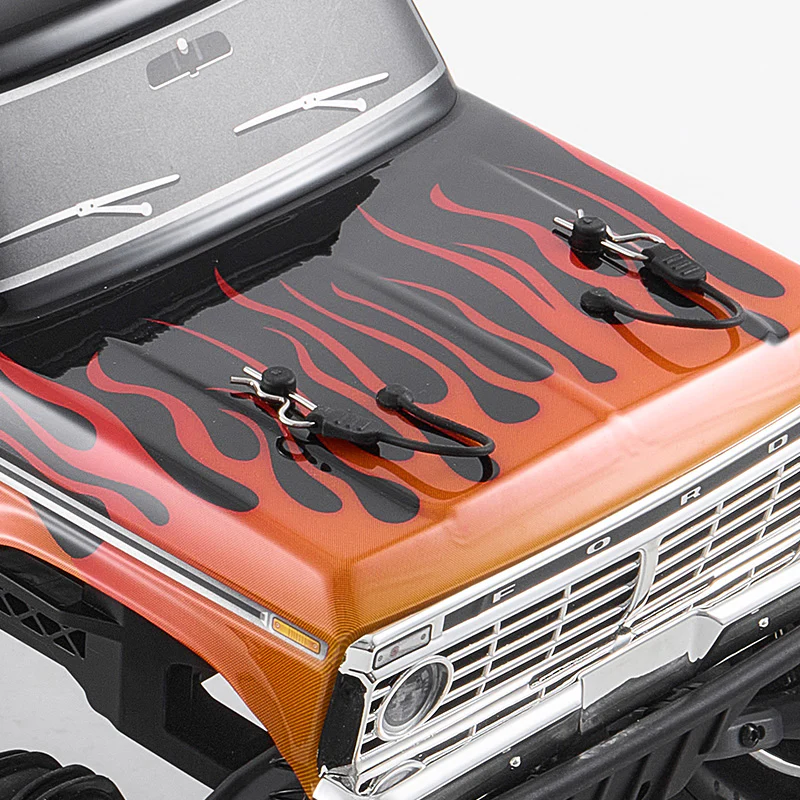

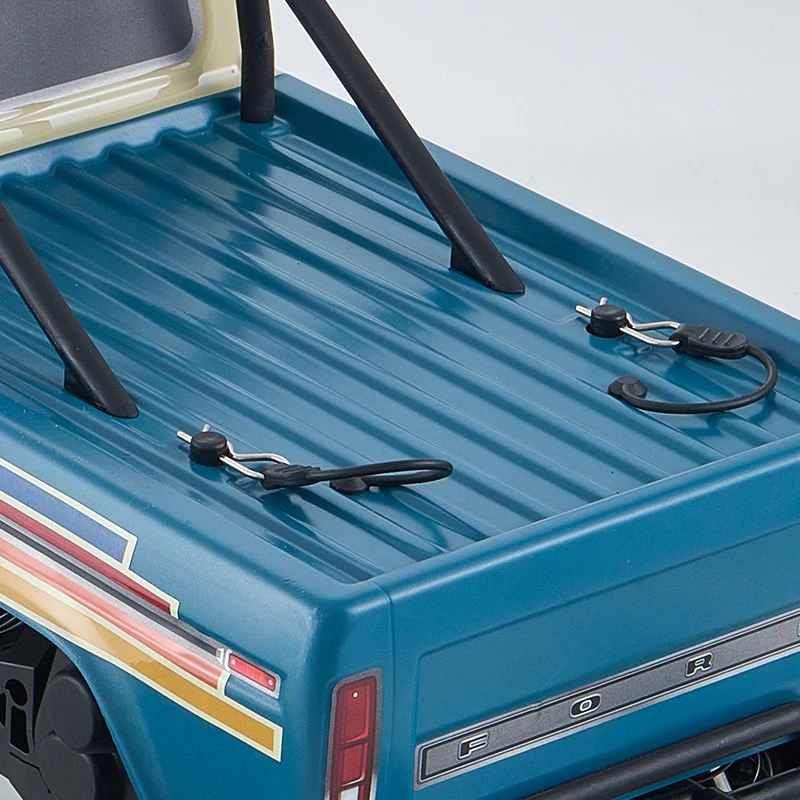

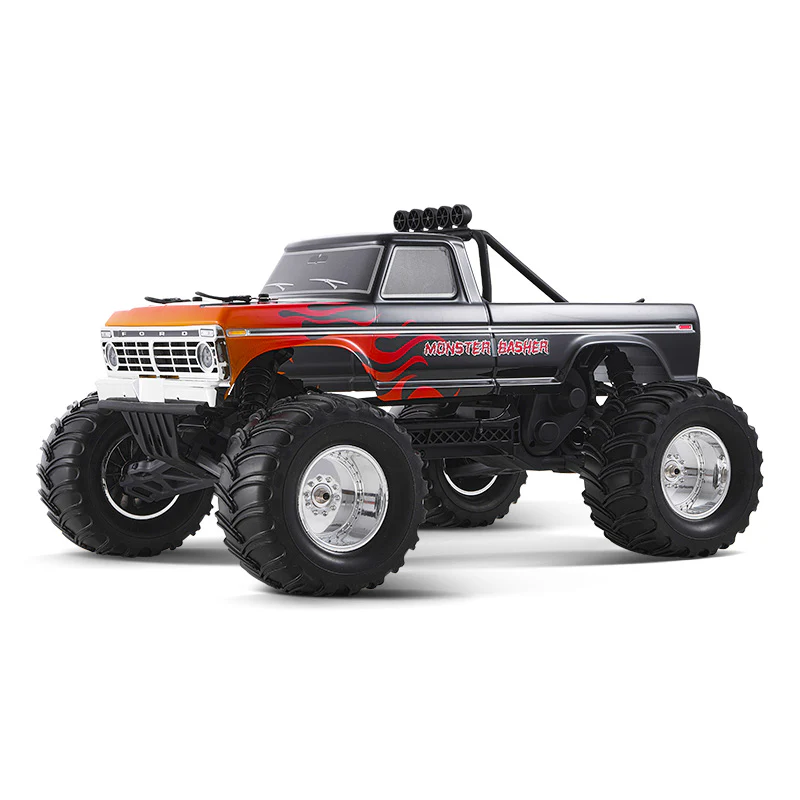

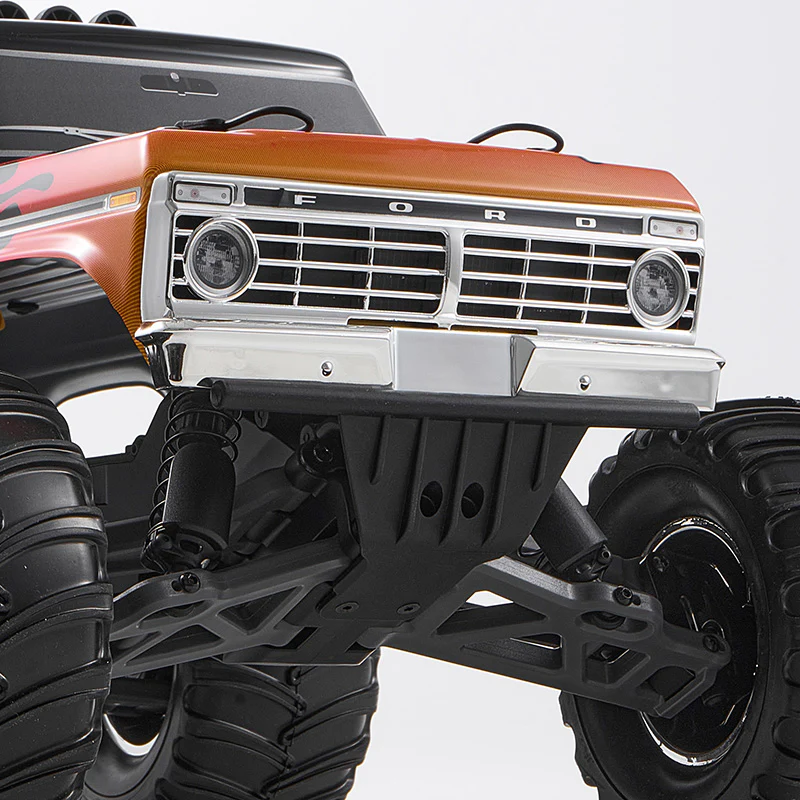

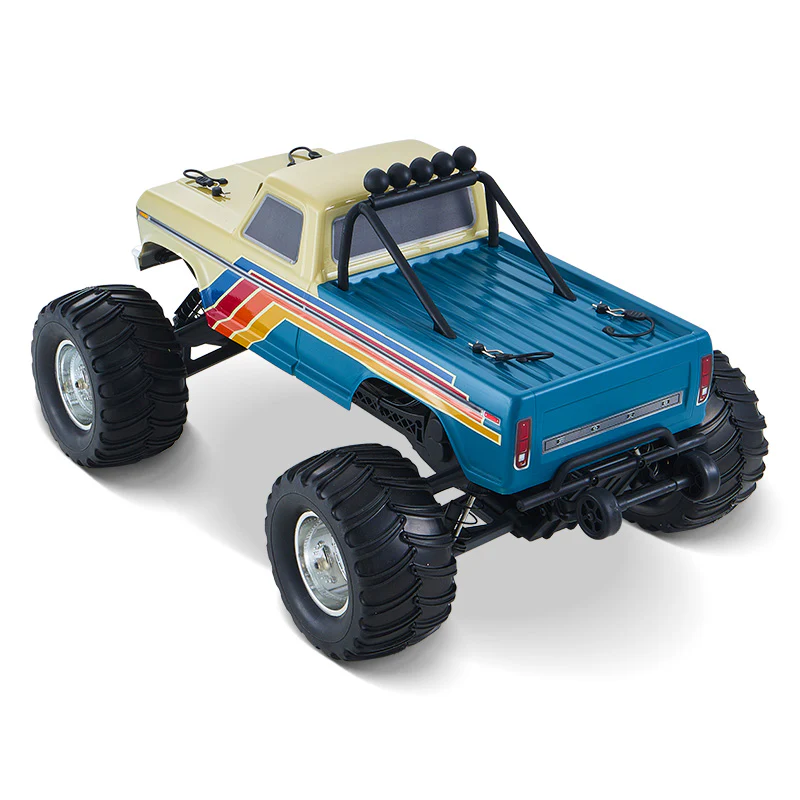

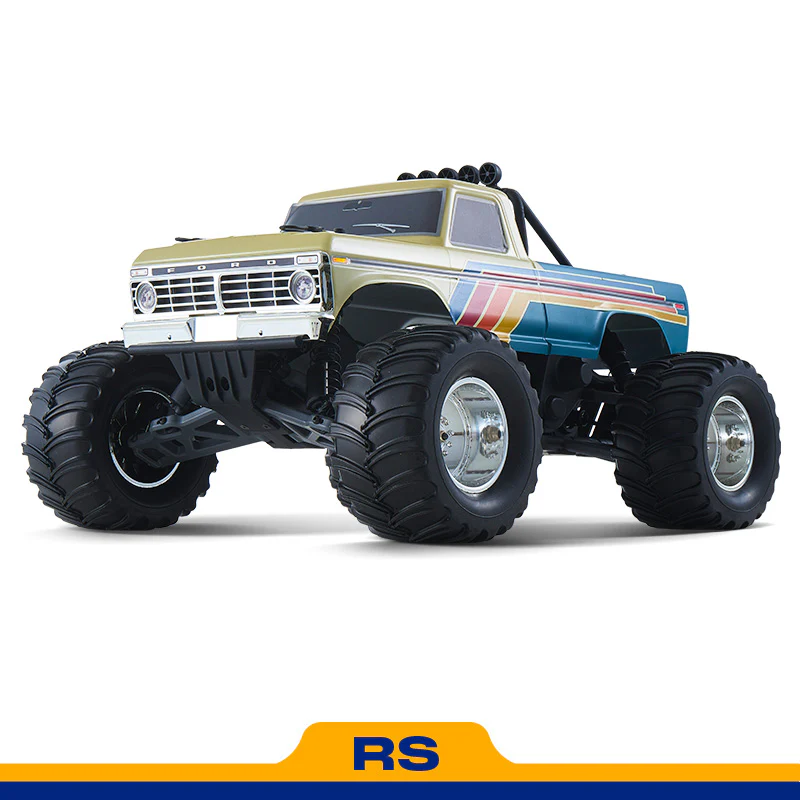

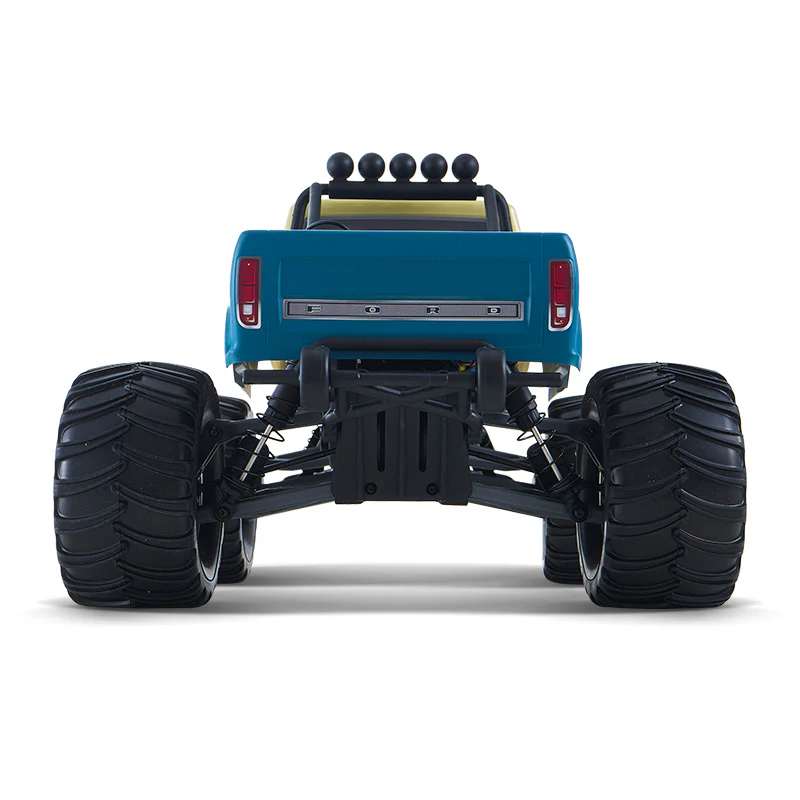

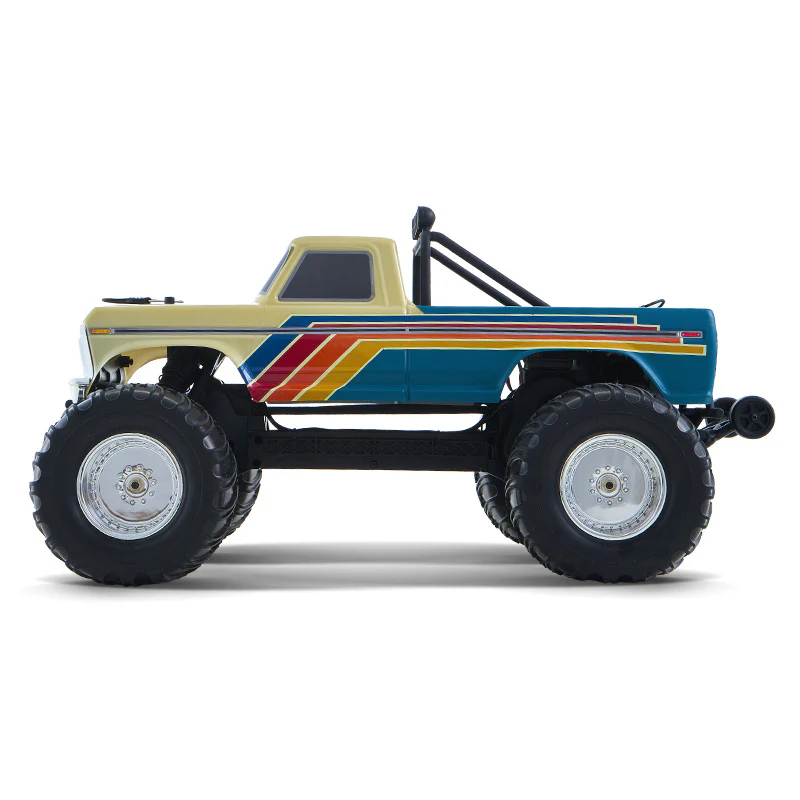

The FMS 1/10 Ford F-100 is a fun, versatile 2WD monster truck built for everyday bashing. Its durable PC body shell faithfully captures the classic F-100 “dentside” styling, with carefully replicated body lines and scale proportions. The truck comes factory-finished with window outlines, lighting accents, and dentside graphics that run from front to rear, creating a layered, realistic appearance. Electroplated grille and bumper trim add a touch of realism, while included accessories such as a detachable roll bar and auxiliary off-road light pods allow you to customize the look to match your style.

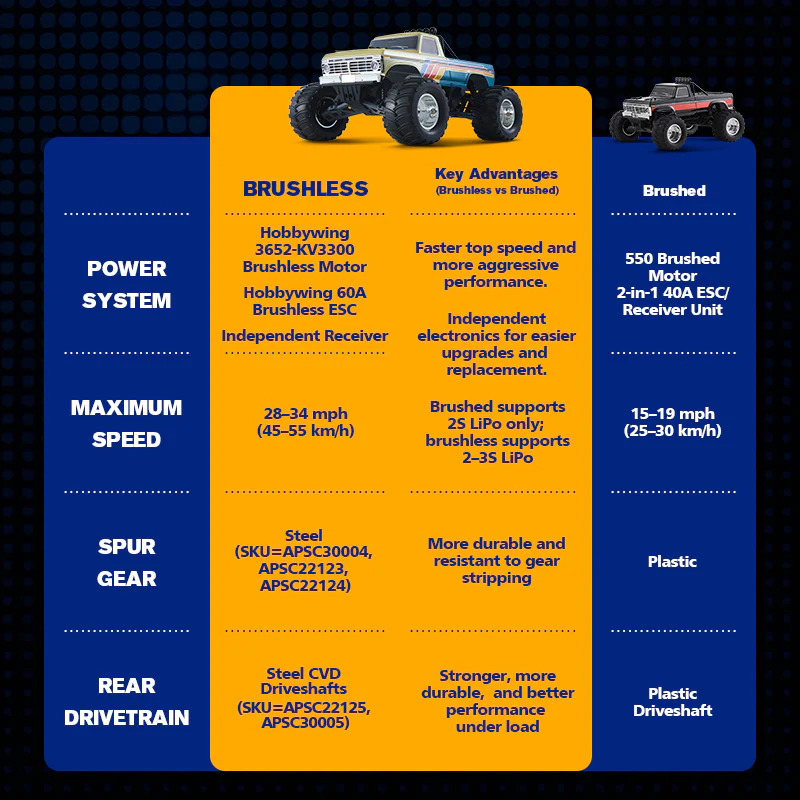

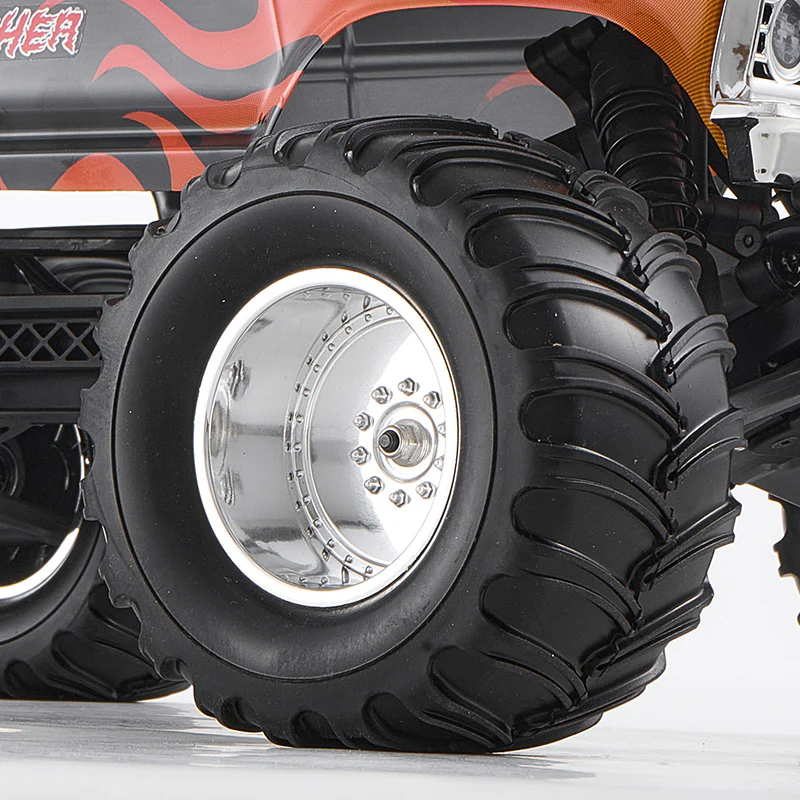

Under the body, the F-100 delivers confident brushless performance through a rear-wheel-drive 2WD layout. A Hobbywing 3652 brushless motor paired with a 60A brushless ESC provides strong acceleration and smooth throttle control, making it an ideal step-up for drivers moving into brushless power. Large rubber monster-truck tires offer dependable grip across pavement, dirt, and grass, while the centrally mounted battery tray with snap-latch door makes battery swaps quick and simple. The chassis accommodates most standard-size LiPo or NiMH packs for flexible power options.

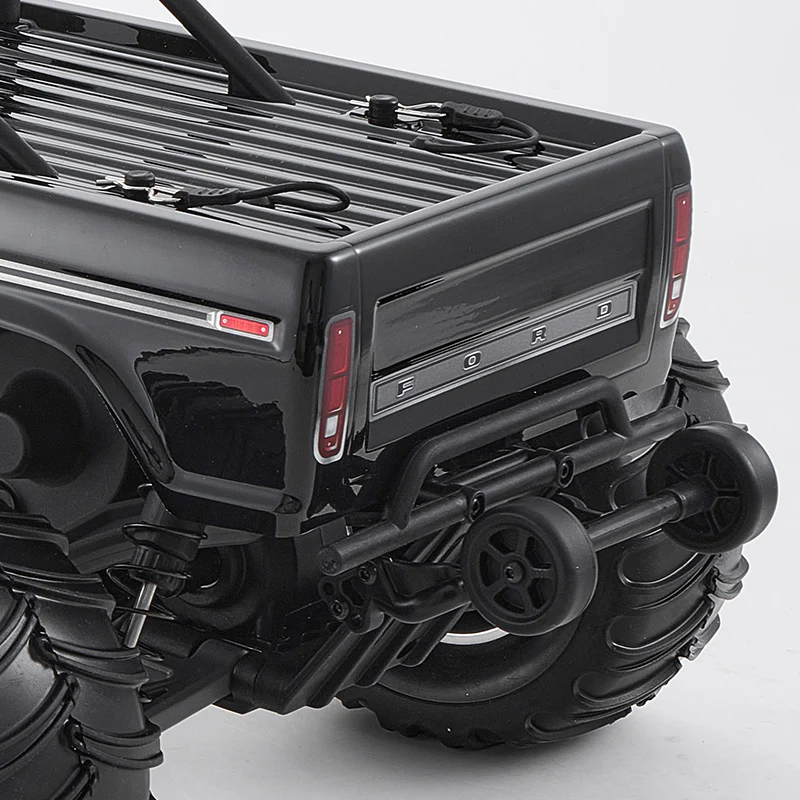

An adjustable wheelie bar is included in the box (not pre-installed), featuring multiple mounting positions to support the truck during hard launches, jumps, and high-speed runs. Install it when you’re ready to push harder and keep the truck planted under acceleration.

What's in the box:

• 1 x 1:10 Ford F-100 Brushless RS
• 1 x FS-G4P-BS 2.4GHz Transmitter
• 1 x FS-R4B-BS Receiver (installed)
• 1 x Hobbywing 60A Brushless ESC (installed)
• 1 x Hobbywing 3652 Brushless Motor (installed)
• 1 x Product Manual

Need to Complete:

• 4 x AA Batteries for Transmitter
• RS Version: Requires battery and charger (not included)


• Recommended Battery Options:
  2S LiPo (7.4V) 4400mAh 30C with XT60 connector (SKU: C1542)
  3S LiPo (11.1V) 5500mAh 70C with XT60 connector


• Power Recommendations:
  For beginners: Use a 2S LiPo battery for smoother control and easier handling.
  For experienced drivers: Use a 3S LiPo battery to unlock maximum performance and top speed.


Notes To Buyer:

• This product contains precision components and is not a toy. It is recommended for users 14 years of age and older.
• The vehicle is capable of speeds up to 34 mph (55 km/h). Operate only in open areas away from people, traffic, and obstacles.

Specification:

Product Size	476 x 335 x 240mm
Wheelbase	294mm
Tire Size	D130 x W70mm
Ground Clearance	45mm
Motor	Hobbywing 3652-KV3300
ESC	Hobbywing WP-10BL60-RTR-G2
Steering Servo	15kg x 1
Drive System	2WD
Transmitter	FS-G4P-BS
Receiver	FS-R4B-BS
Waterproof Class	Splash-proof
Maximum Speed	55km/h
Maximum Control Distance	150m
Recommended Battery	2S LiPo Battery 7.4V 5500mAh 50C with XT60 Connector or 3S LiPo Battery 11.1V 5500mAh 70C with XT60 Connector
Battery Compartment	152 x 49.5 x 30mm
Endurance Reference	15-20mins (3000mAh)
